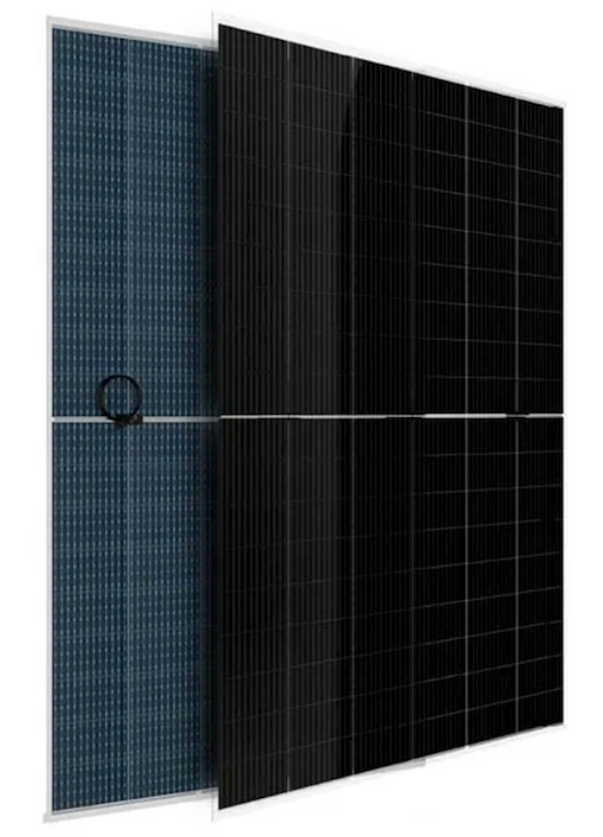

The CW Energy CWT550-144PMB10 550W bifacial solar panel delivers exceptional performance, sleek aesthetics, and long-term reliability. Now available through NC Solar Electric.
Features
- 21.29% Module Efficiency – High conversion rate for maximum energy output.
- Bifacial PERC Technology – Rear-side power gain up to 30%, reaching up to 715W total output.
- Black-on-Black Design – Ideal for rooftops and visible installations.
- Self-Cleaning & Anti-Reflection Glass – Maintains performance in low-light and dusty conditions.
- Extreme Durability – Withstands wind and snow loads up to 5400 Pa.
- Positive Power Tolerance (0~+5W) – Ensures consistent energy production.
- Certified & Reliable – ISO, IEC, and UL certified for safety and quality.
- Long-Term Warranty – 30-Year Performance Warranty, 12-Year Product Warranty.
Electricity from the Sun
Further Details
| Specification | Value |
|---|---|
| Model | CWT550-144PMB10 |
| Peak Power (Pmax) | 550Wp |
| Module Efficiency | 21.29% |
| Max Power Voltage (Vmp) | 42.40V |
| Max Power Current (Imp) | 12.98A |
| Open Circuit Voltage (Voc) | 50.20V |
| Short Circuit Current (Isc) | 13.82A |
| Max System Voltage | 1500V DC |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 2278 x 1134 x 35 mm |
| Weight | 28 kg |
| Junction Box | IP68 |
| Frame Color | Silver / Black |
| Rear Side Material | Transparent Backsheet |
